Push Button Switch 440V 10A - Green Andeli

Original price 1.800 OMR - Original price 1.800 OMR
Original price
1.800 OMR
1.800 OMR - 1.800 OMR
Current price 1.800 OMR

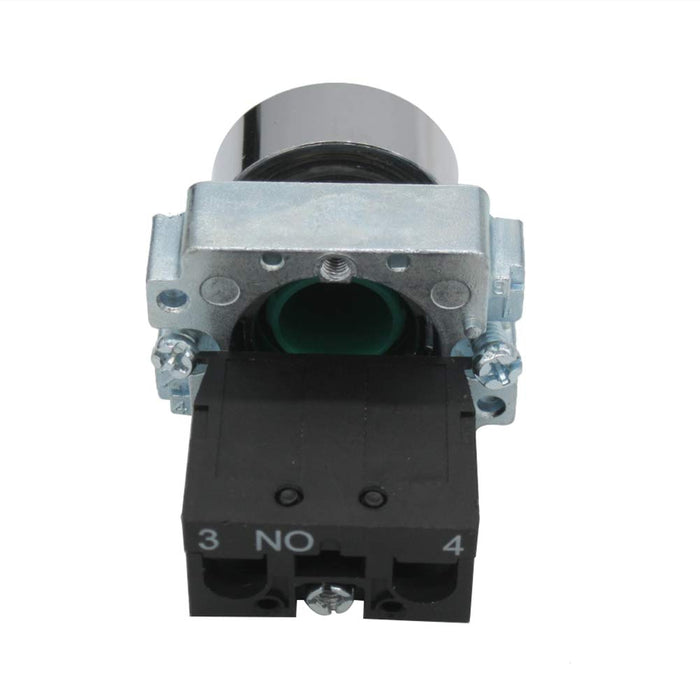

This Push Button Switch from Andeli is perfect for a range of applications such as industrial control panels. Engineered for 440V 10A, the switch includes 1NC contact type, a metal and plastic casing and a button diameter of 29mm. Installation is secure with a 22mm terminal panel cutout and 5mm panel thickness. Suitable for a variety of projects. It's designed for optimal performance, consistency, and durability for a range of applications. The switch provides reliable and accurate switching and offers a long service life and excellent insulation properties.

Specification

  • Push Button Switch 440V 10A Green
  • Product Name : Push Button Switch; Contact Type : 1NC ; Action Type : Momentary; Ith : 10A;Ui : 440V
  • Button Diameter : 29mm/ 1.14";Total Size(Approx) : 40x 30x 54mm/ 1.6" x 1.2" x 2.1" (L*W*H);External Material : Plastic, Metal
  • Special Note: This switch, Must be fixed to use on the panel;Terminal Panel Cutout Diameter : 22mm / 0.87";Fit Panel Max. Thickness : 5mm / 0.2"
  • Package Content : 1 x Button Switch ; Net Weight : 60g
  • Make : Andeli Made in China
