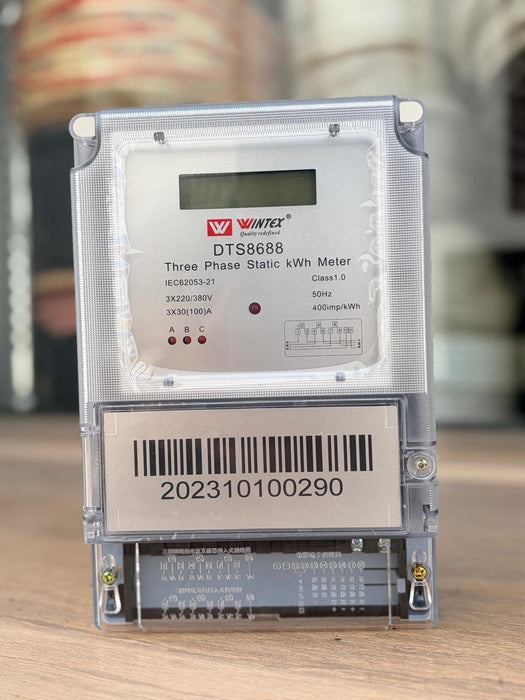

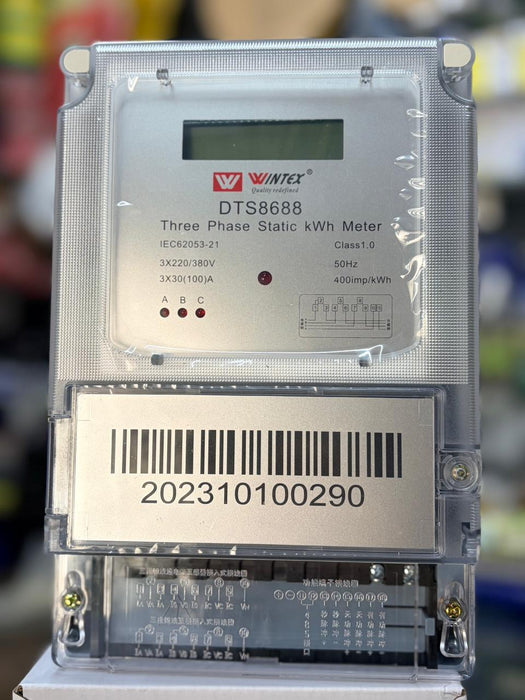

Wintex DTS8688 Three Phase Static kWh Meter

Wintex DTS8688 Three Phase Static kWh Meter

21.600 OMR - 21.600 OMR
21.600 OMR
21.600 OMR - 21.600 OMR
21.600 OMR
Brand: Wintex
Model: DTS8688
Type: Three-Phase Static (Digital) Active Energy Meter
Standard: IEC62053-21 (International Standard for static meters for active energy)
Accuracy Class: Class 1.0 (Highly precise energy calculation)
Reference Voltage: 3 x 220/380V (Suitable for three-phase four-wire grid systems)
Frequency: 50Hz
Current Rating: 3 x 30(100)A — standard operating current is 30 Amps per phase, up to a maximum load capacity of 100 Amps.
Meter Constant: 400 imp/kWh (The red indicator light flashes 400 times for every 1 kilowatt-hour of energy consumed).
Serial Number: 202310100290
