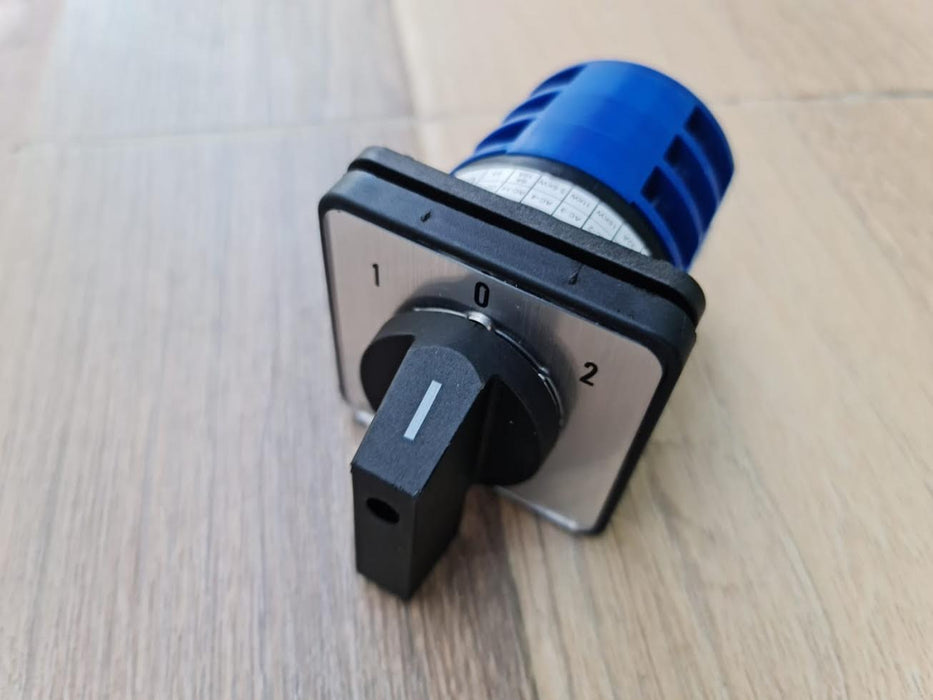

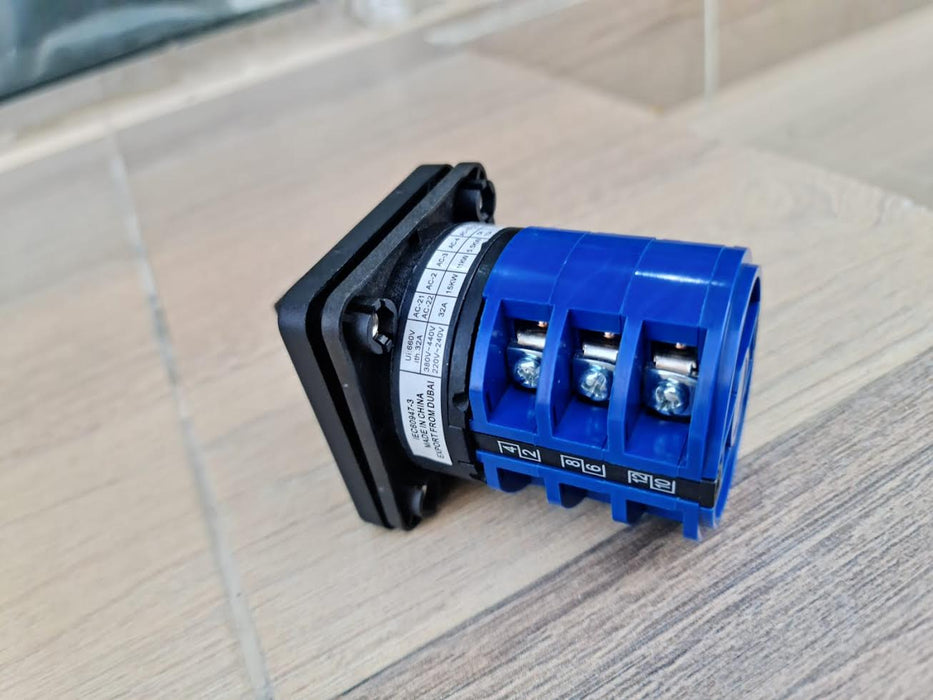

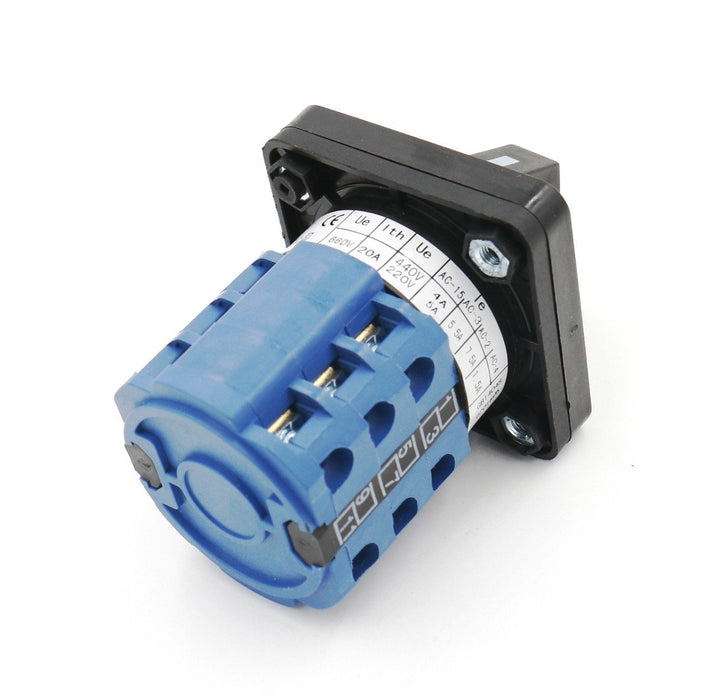

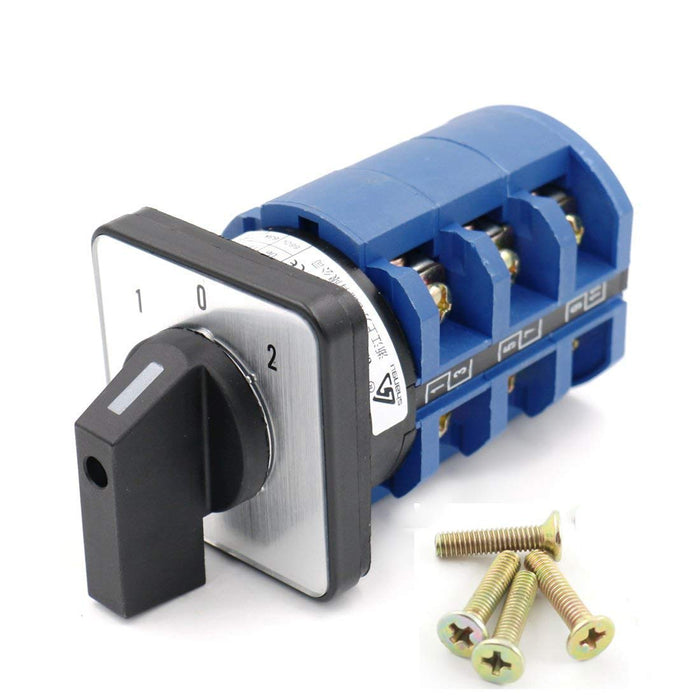

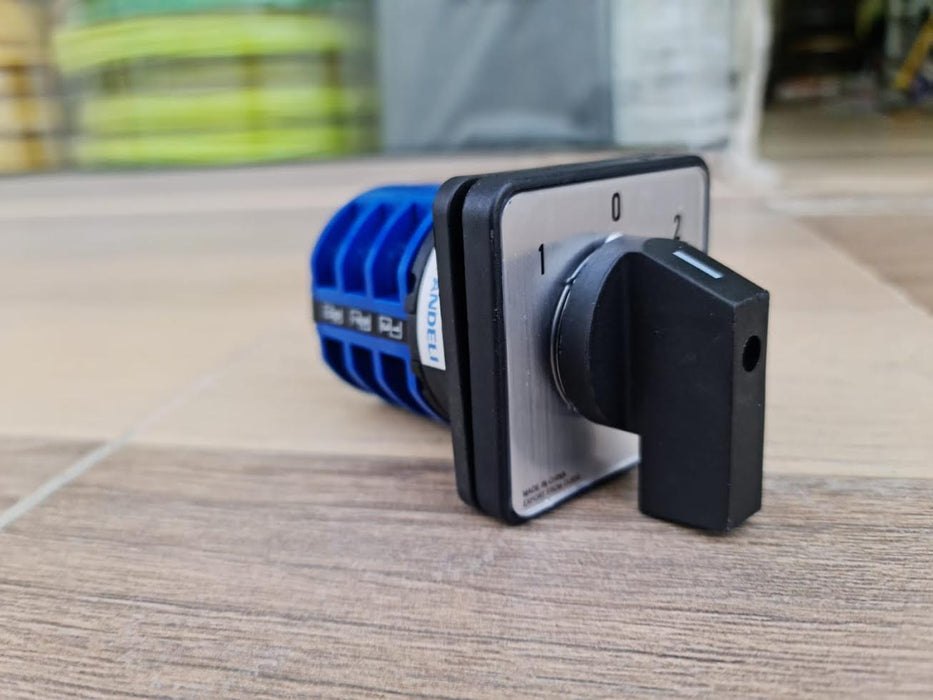

Changeover Control Rotary Switch 20A On-Off-On 3 Positions

Original price 9.500 OMR - Original price 9.500 OMR
Original price
9.500 OMR
9.500 OMR - 9.500 OMR
Current price 9.500 OMR

This Changeover Control Rotary Switch is perfect for a wide range of applications, from circuit control to testing equipment control. It features a 20A current capacity, On - Off - On positions control, and 12 terminals design. Built to last, this switch is suitable for the thickness between 1mm to 4mm of mounting boards and has a Ui of 660V. With 4A/5A AC-15, 5.5A AC-3, 7.5A AC-2, and 1.5A AC-4, it is ideal for electric welding machinery and other equipment. It measures 50mm x 50mm x 80mm.

Changeover Control Rotary Switch 20A On-Off-On 3 Positions

Product description

  • On - Off - On position control and 12 terminals design.
  • Suitable for the thickness between 1mm to 4mm of the mounting board.
  • Suitable for a wide range of applications, it can be applied as a circuit control  switch,  master control switch, testing equipment control switch, or change- over switch for electric welding machinery and other equipment.
  • Ui : 660V ; Ith : 20A
  • Le : AC-15 4A/5A;AC-3 5.5A;AC-2 7.5A;AC-4 1.5A ;
  • Positions : 3 Positions(1-0-2)
  • Overall Size : 50 x 50x 80mm /2" x 2" x 3.1"(L*W*H)
  • Net Weight : 129g ; Package Content : 1 x Changeover Switch
