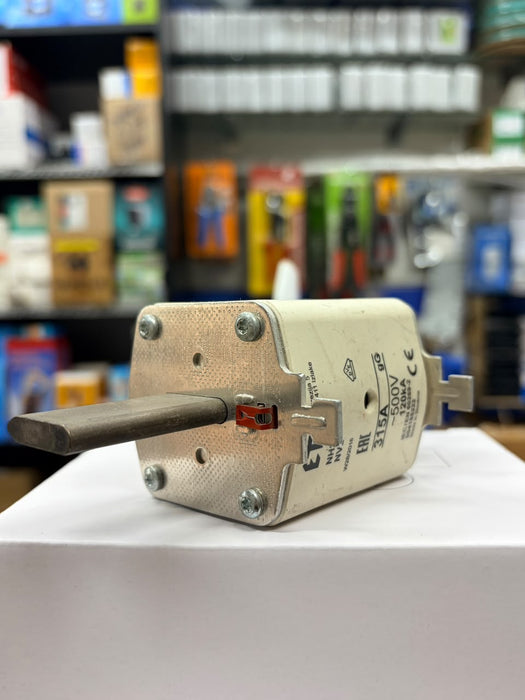

ETI NH2/NV2 INDUSTRIAL KNIFE BLADE FUSE LINK 315A AT ~500V

ETI NH2/NV2 INDUSTRIAL KNIFE BLADE FUSE LINK 315A AT ~500V

11.800 OMR - 11.800 OMR
11.800 OMR
11.800 OMR - 11.800 OMR
11.800 OMR
Manufacturer: ETI (Made in Slovenia)
Product Code / Part Number: 004185222
Size Category: NH2 / NV2 (Standard industrial knife-blade dimension)
Rated Current: 315A (Amperes)
Operating Class: gG (General-purpose application, primarily used for full-range cable and line protection)
Rated Voltage: ~500V AC (Alternating Current) / 250V DC (Direct Current)
Breaking Capacity: 120kA (Maximum short-circuit current the fuse can safely interrupt)
Standards Compliance: Built according to IEC/EN 60269-2 electrical standards
Body Material: High-grade Steatite ceramic designed to withstand high pressure and thermal shocks

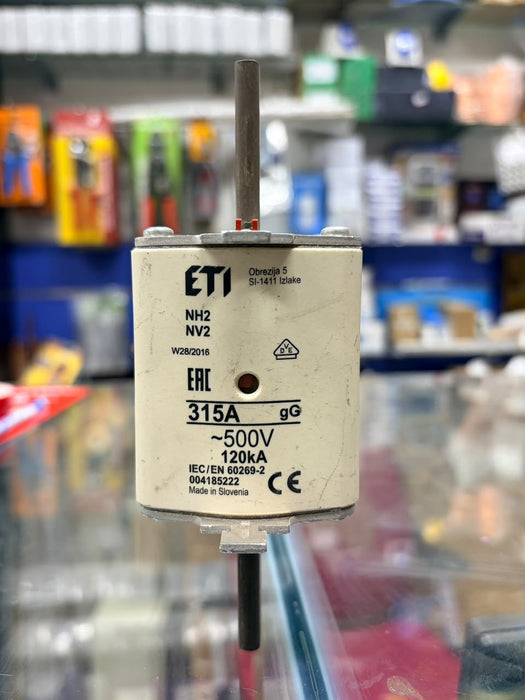

The small circular reddish area in the center of the body features a combination fuse status indicator. When the fuse blows due to a fault, this mechanical indicator will trigger to visually signify that the component has open-circuited and needs immediate replacement
