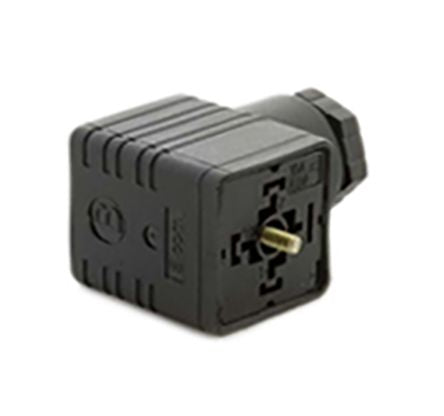

Solenoid Valve Connector, Female, Screw, 10A, 250 VAC Connector Sockets, 2/3 Pole + Earth, Type A
Connector Sockets, 2/3 Pole + Earth, Type A
A selection of 2 and 3 pole and earth, non-illuminated DIN connector sockets rated at 250Vac. These screw mount sockets are Type A, available with PG9 and PG11 glands and are of Nylon-6 GF construction, with a Nitrile/silicon gasket.
Features and Benefits:
• 2 and 3 Pole + earth versions
• Type A socket Type
• Gland size PG-9 and PG-11 variants
• Contact resistance 20mΩ max.
• Permissible Temperature 0 to 90° C
• HV breakdown test 2KV AC for 1 minute
|DIN 43650 Type||DIN 43650 A|
|Voltage Rating||250 V ac|
|Cable Gland Size||PG9|
