SPLIT-TYPE HYDRAULIC CRIMPING TOOL SET
Original price
365.000 OMR
-
Original price
365.000 OMR
Original price
365.000 OMR
365.000 OMR
-
365.000 OMR
Current price
365.000 OMR

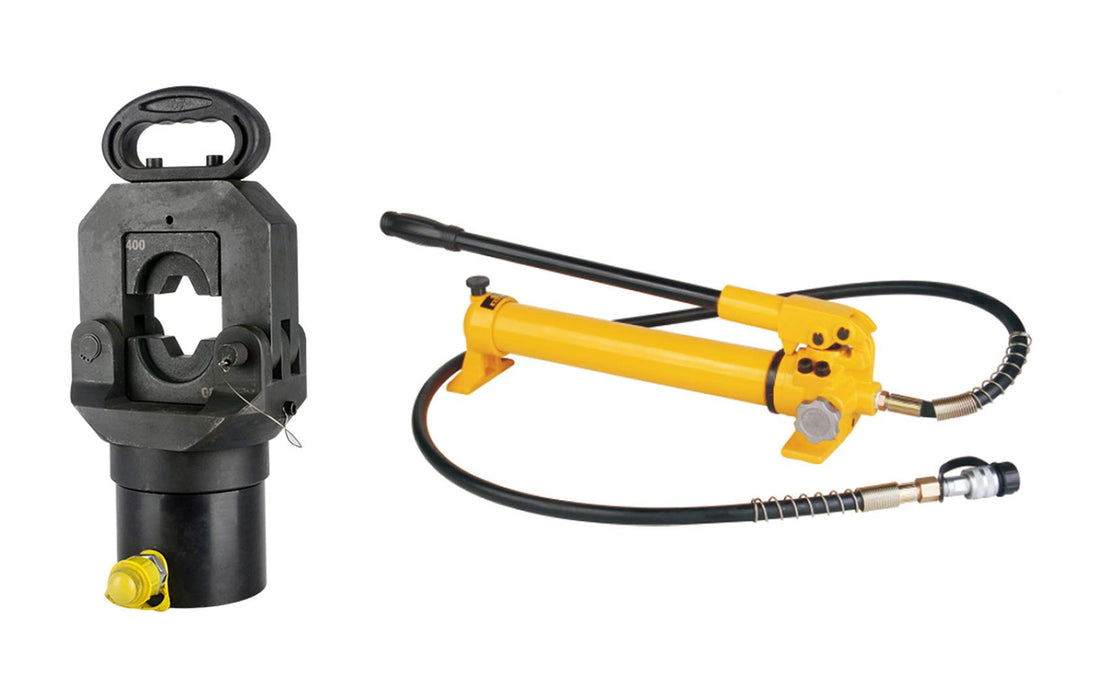

1. Hydraulic Crimping Head (Left)
Type/Model: Typically designated as a split hydraulic crimper head (commonly models like FYQ-400 or FYQ-630).
Function: It houses interchangeable hexagonal crimping dies (visible inside the jaw marking "400") to compress terminal lugs onto thick power cables.

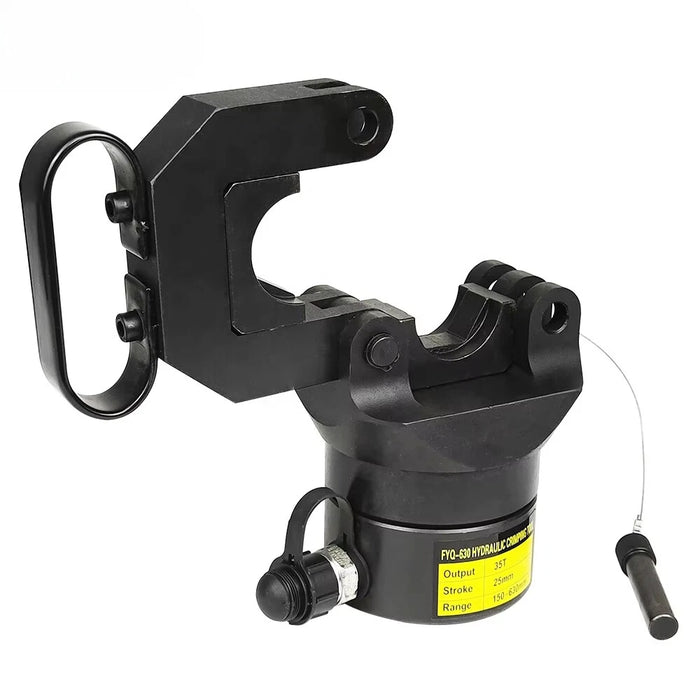

Design Features: Features a top carrying handle, a quick-coupling oil inlet at the bottom covered by a yellow dust cap, and a locking pin system to safely lock or swap out the crimping dies
Manual Hydraulic Hand Pump (Right)
Model: CP-700 Hydraulic Hand Pump.
Function: Serves as the high-pressure power source that drives hydraulic fluid into the crimping head through a flexible high-pressure hose.
Specifications:
- Maximum Output Pressure: Up to 700 bar (10,000 PSI).
- Operation: Dual-speed mechanism (rapid oil delivery under low pressure, shifting to high pressure when contact is made) with a top manual pressure release knob.
- Hose Connection: Equipped with a 3/8" NPT thread quick-connect coupler at the tip to latch directly into the crimping head
