Temperature Controller Accurate Temperature Control F or C Digital Thermostat
Product description
1. Built-in high precision chip for high sensitivity and accurate temperature control.
2. Support ℃/℉ temperature display.
3. When the thermocouple signal is input, the resolution of digital display can reach 0.1 ℃/0.1℉.
4. Short shell design, only 85mm depth, easy to mount and use.
5. Robust flame-retardant housing, waterproof, dustproof and anti-shock.
Specification :-
Control type: temperature
Control mode: PID control and self-tuning control
Power consumption: <10VA
Measurement object: temperature
Temperature range: -199~400°C
Temperature measurement error: ±1°C
Measurement accuracy: ±0.5%FS
Working voltage: 85~265V
Display: °F or °C
Input: Universal input (K, E, J, N, S, T, R, B, Pt100, etc., can be changed by yourself)
Minimum resolution: 0.1°C / 0.1°F
Mounting type: embedded panel
Mounting size: 92*92mm / 3.6*3.6in

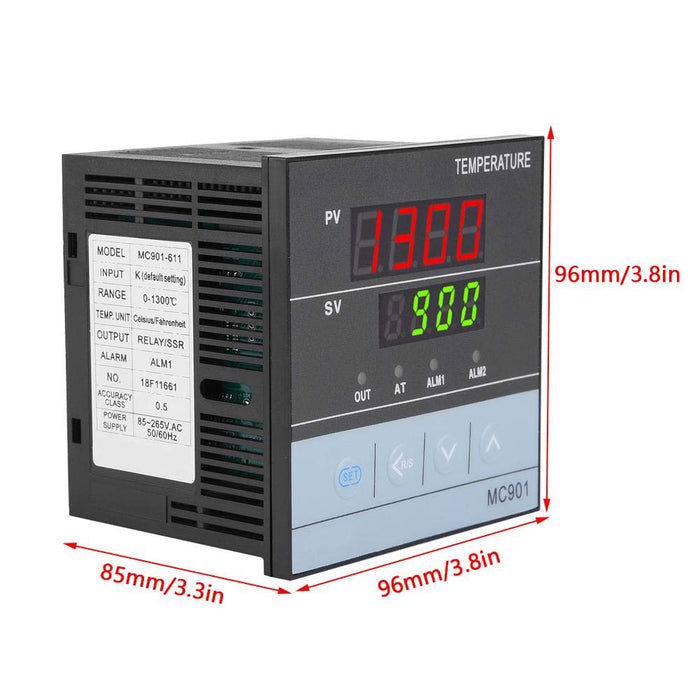

Dimensions: 96*96*85mm / 3.8*3.8*3.3in
Weight: Approx. 252g/8.9oz
Package List:
1 * Digital Temperature Controller
2 * Bolts
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
